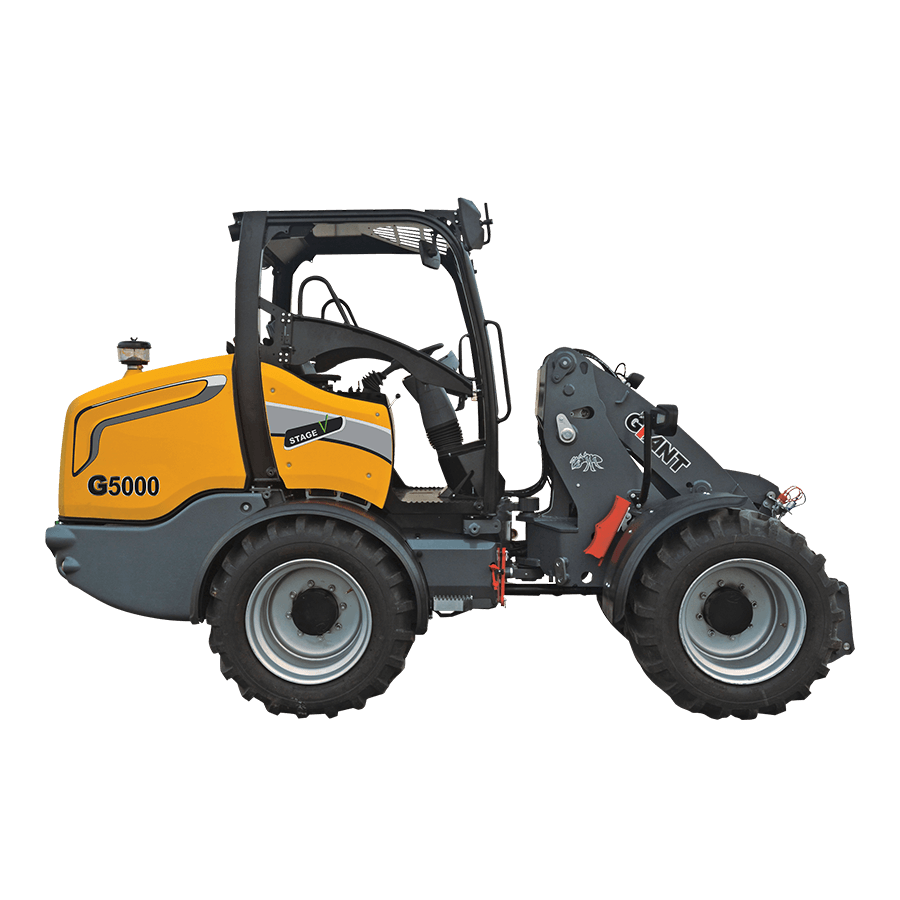

G5000 X-TRA

This compact and agile mini shovel represents productivity, comfort, and a long lifespan. The G5000 X-TRA model features a lower front frame and is specifically developed for extremely heavy-duty work and tasks within construction and earthmoving. The G5000 models are designed to operate in small spaces and on rough terrain. The knuckle system, along with the low weight and compact dimensions, allows these machines to be highly maneuverable, enabling precise work.

Download brochure here

G5000 X TRA 0
Choice of various types of safety roofs

Choose the roof structure that suits your tasks

ROPS / FOPS safetyroof
Choice of various attachments

Select the right attachment for your tasks

Pallet fork
Earth bucket
Stone bucket
High volume bucket
Choice of various types of tires

Select the right tires for your tasks

445/45R19,5 Kargo
500/45-20 AS
500/45R22,5 GSP
500/45-R22.5 Ridemax FL693
600/40-22,5 AS
GIANT hydraulic quick change system
ROPS/FOPS safety roof incl. rear window and safety doors (L+R)
Luxury air suspended seat with safety belt, armrest and extended backrest
Double acting hydraulic function on lifting arm (mechanical)
Floating position on lifting cylinder(s)
Hydraulic servicebrake on 4 wheels
Working light (halogen) front, on lifting arm
Main switch
Anti-theft protection with access code (not certified)
Tow coupling
Counterweight integrated into the bumper
Cyclone filter
Oil cooler

The GIANT articulated loader combines a tipping load of 4,695 kg with a powerful 75 hp diesel engine, hydrostatic 4-wheel drive, and 100% switchable differential lock on both axles. This ensures the wheel loader always has sufficient grip, pulling force, and smooth movement.

Service weight 1 5100 kg
Lifting capacity 3100 kg

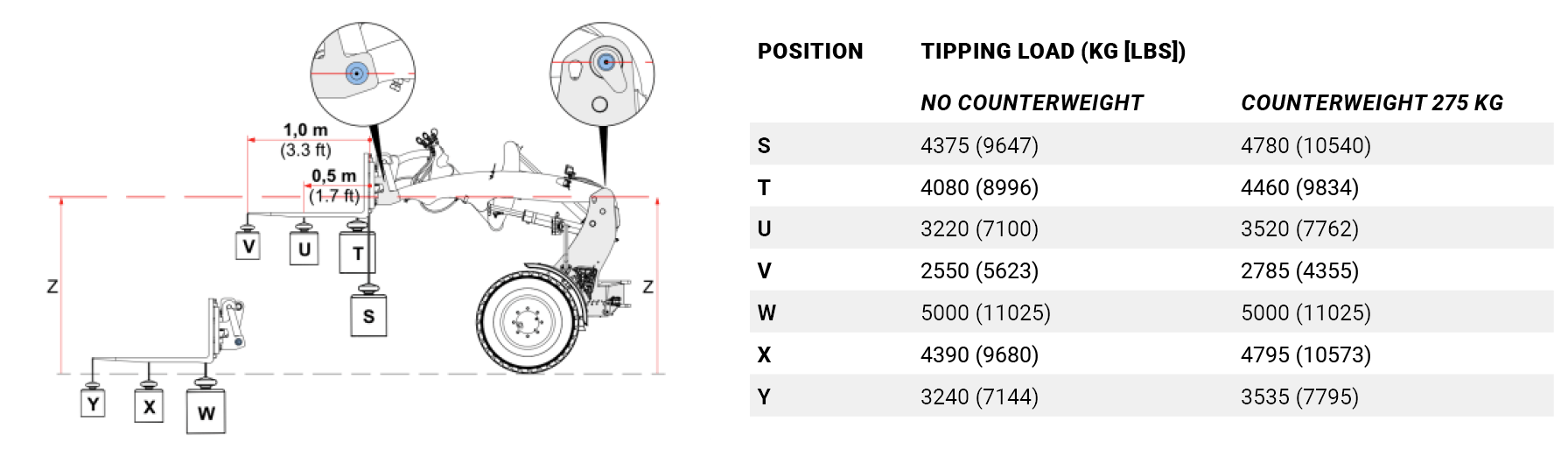

Tipping Load 2 4694 kg
Lifting height 3 2850 mm
Length without bucket 4162 mm
Machine height 4 2523
Width on standard tires 146 mm
Standard tires 11.5/80-15.3 AS
Travel Speed 0-10 km/h, 0-20 km/h (with automatic gear) Optional 0-35 km/h
Engine Kubota V3307-CR-TE (Stage V) with DOC and DPF
Cylinders 4
Engine power 75 hp
Engine power (kW) 55
Fuel tank capacity 77
Oil tank capacity 80 l
Type Hydrostatic 4 wheel drive
Transmission Automotive control
Differential 100% electrical differential lock on both axles
Final drive 16 tons axles with heavy planetary end drive
Pulling force standard 39000 N
Pulling force 2 speed 60000 N
Driving hydraulics 145 ltr/min (480 bar)
Working hydraulics 78 ltr/min (250 bar)
Parking brake Hydraulic multidisc brake SAHR

1Measured with earthbucket

2Measured with counterweight and driver ± kg

3Measured with counterweight and driver ± kg

4ᶟ Measured on standard tyres with safety roof

Attachments for G5000 X-TRA More Attachments
