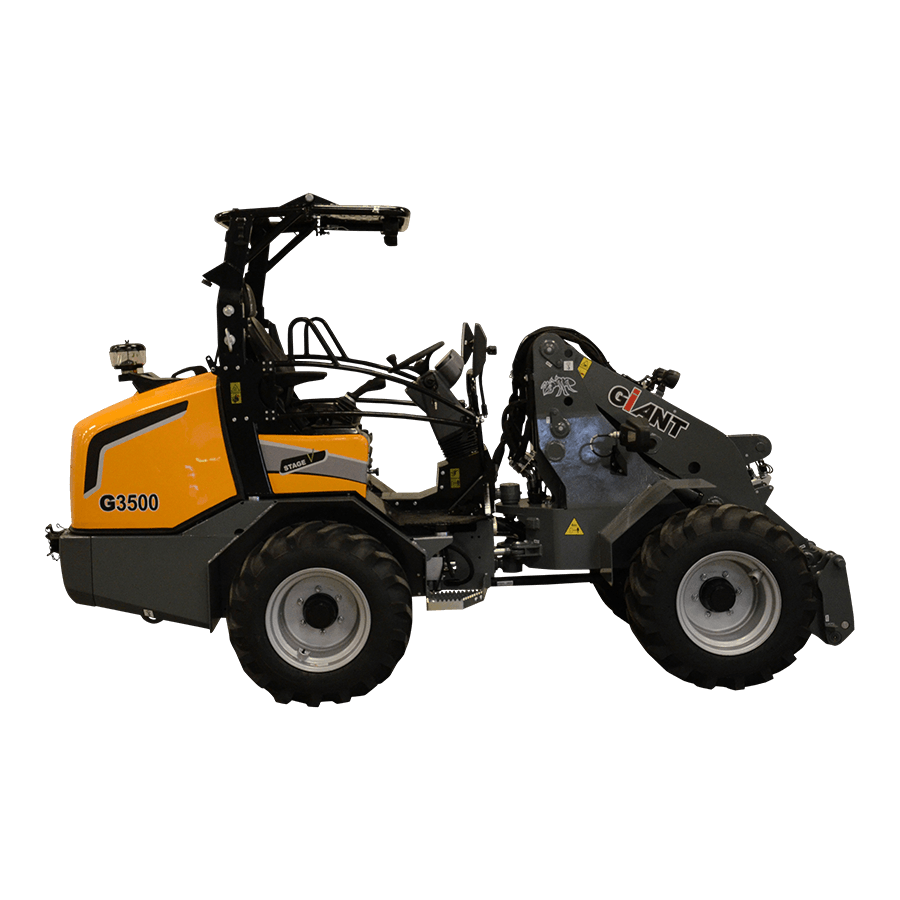

G3500 Z-BAR

The G3500 is a powerful compact wheel loader with unique comfort thanks to its spacious cabin. The 66 hp Stage V engine provides a lifting capacity of 2,800 kg and a lifting height of up to 3.3 m. This makes the wheel loader very versatile in various sectors for all day-to-day jobs in the construction industry, at a landscaping firm, in municipalities or on an agricultural farm.

g3500klapdakweb
Request price Configure
G3500 Z HEF 0
G3500 Z HEF 1
G3500 Z HEF 2
G3500 Z HEF 3
GIANT hydraulic quick change system
Lifting arm
ROPS / FOPS safetyroof incl. safety doors left and right
Luxury air suspended seat with safety belt, armrest and extended backrest
Double acting valve at the front (mechanical)
Floating position on lifting cylinder(s)
Hydraulic servicebrake on 4 wheels
Working light (halogen) at the front
Battery, 77 Ah
Main switch
Anti-theft protection with access code (not certified)
Towing hook at the back
1 Counterweight integrated into the bumper
Cyclone filter
Oil cooler
kiplasten g3500

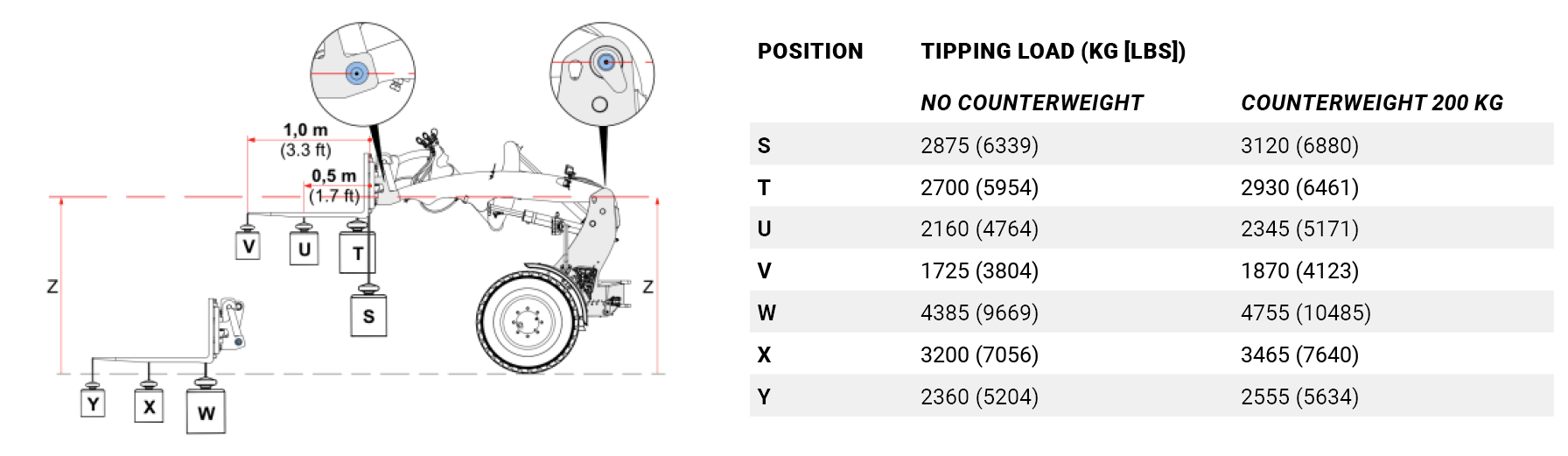

Tipping loads of the machine

The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.


Specifications
Service weight 1 3800 kg
Lifting capacity 2800 kg
Tipping Load 2 3200 kg
Lifting height 3 3290 mm
Length without bucket 3750 mm
Machine height 4 2330
Width on standard tires 1340 mm
Standard tires 11.5/80-15.3 AS
Travel Speed 0-10 km/h 0-30 km/h
Engine Kubota V2403-CR-TE5B DOC/DPF (STAGE V)
Cylinders 4
Engine power 66 hp
Engine power (kW) 48,5
Fuel tank capacity 68 l
Oil tank capacity 80 l
Type Hydrostatic 4 wheel drive
Transmission Automotive control
Differential 100% electrical differential lock on both axles
Final drive 14 tons axles with heavy planetary end drive
Pulling force 30.000
Driving hydraulics 112 l/min (450 bar)
Working hydraulics 70 l/min (220 bar)
Parking brake Drum brakes

1Measured with earthbucket

2Measured with counterweight and driver ± kg

3Measured with counterweight and driver ± kg

4ᶟ Measured on standard tyres with safety roof

Downloads
Attachments brochure Download the brochure with information about the extensive range of GIANT attachments here.
Download brochure
Download brochure}
G3500 series brochure Download the brochure with information about the G3500 series here.
Download brochure
Download brochure}
