G2700E X-TRA HD
No emissions
Electrical motor
Equipped as standard with a 260 Ah, 48V lithium-ion battery
Choice of various types of safety roofs
Choose the roof structure that suits your tasks
Choice of various attachments
Select the right attachment for your tasks
Choice of various types of tires
Select the right tires for your tasks
ROPS / FOPS safetyroof incl. safety doors (L+R)
Mechanically suspended seat incl. safety belt and armrest
1x Double acting hydraulic function on lifting arm, mechanical
Hydraulic servicebrake on 4 wheels
Working light (LED) front, on lifting arm
Anti-theft protection with access code (not certified)
Shunt coupling
GIANT hydraulic quick change system
Specifications
Service weight
1
2688 kg
Lifting capacity
2200 kg

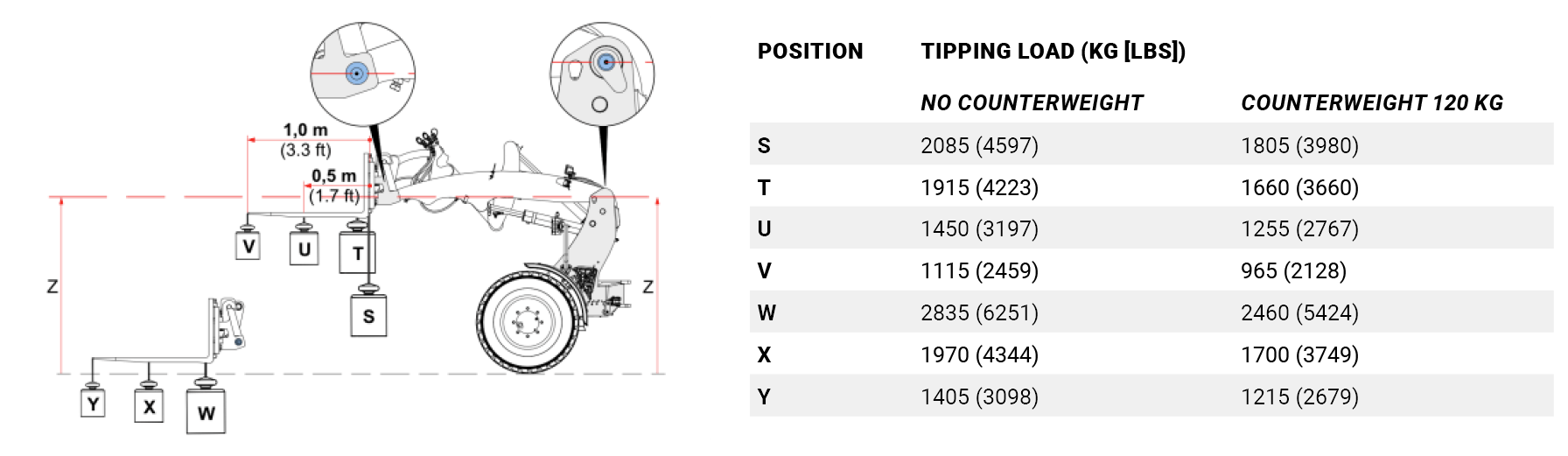

Tipping Load
2
2455 kg
Lifting height
3
2498 mm
Length without bucket
3377 mm
Machine height
4
2339
Width on standard tires
1080 mm
Standard tires
11.5/80x15.3 AS
Travel Speed
0-5 km/h, 0-12 km/h, 0-18 km/h
Electric motor
13 kW
Energy recuperation
Automatic charging of the battery, e.g. during rolling out (elektromotor becomes dynamo)
Pulling force
20000
Hill-Hold control
Automatic brake prevents rolling back on slope
Parking brake
Schijfrem
1Measured with earthbucket
2Measured with counterweight and driver ± kg
3Measured with counterweight and driver ± kg
4ᶟ Measured on standard tyres with safety roof
